LED모듈
led module
| Model No. | Size(mm) | Power Consumption(W) | Luminous flux(lm) | Luminous Efficiency(lm/W) | Color Temperature(K) | CRI | Note |
|---|---|---|---|---|---|---|---|
| ATL-LM5020-75-ST1 | 150X65X39 | 20 | 3,200 | Over 160 | 4000 or 5000 | 70 or 75 or 80 | LED chip : Samsung or CREE |
| ATL-LM5020-75-ST2 | |||||||
| ATL-LM5020-75-TU |

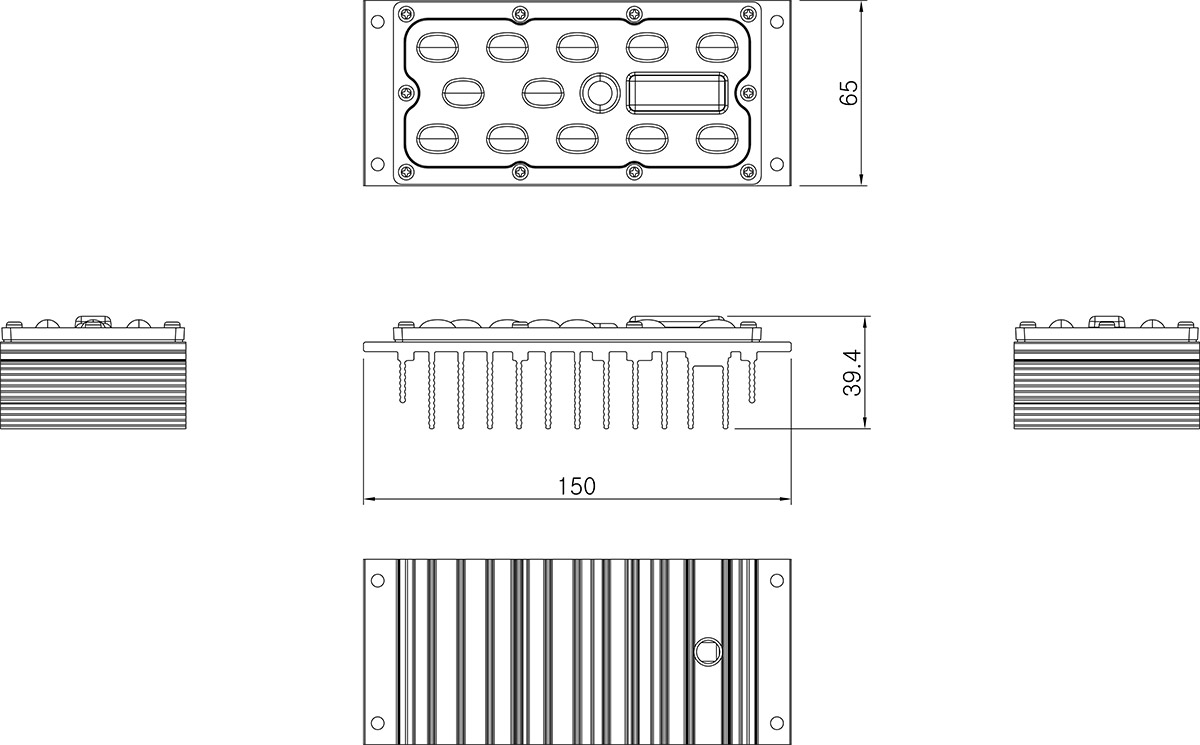

Drawing

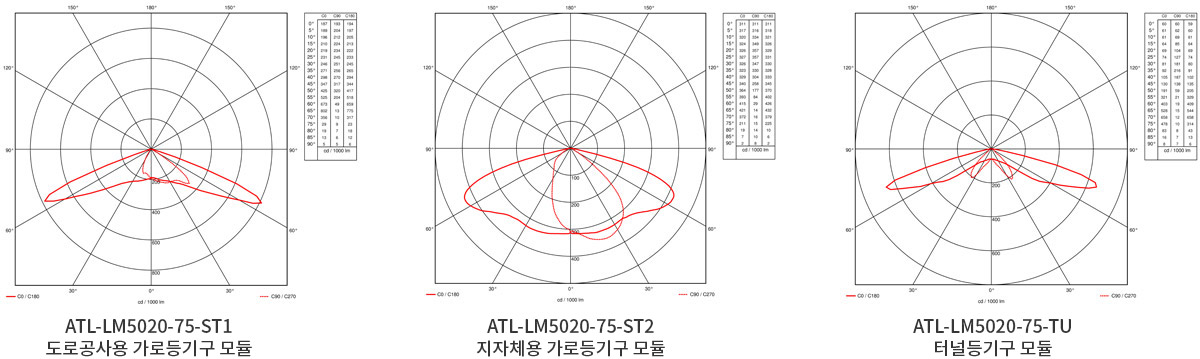

Light distribution curve
