평판등
LED Panel light M Type
| Model No. | Size(mm) | Power Consumption(W) | Luminous flux(lm) | Luminous Efficiency(lm/W) | Color Temperature(K) | CRI | Note |
|---|---|---|---|---|---|---|---|
| ATL-PM3625 | 316X652X50 | 25 | Over 2625 | Over 105 | 5700 | 80 | |
| ATL-PM6640 | 616X616X50 | 40 | Over 4400 | Over 110 | |||
| ATL-PM3240 | 316X1287X50 | 40 | Over 4400 | Over 110 | |||
| ATL-PM3240-N | 315X1278X40 | 40 | Over 4400 | Over 110 |

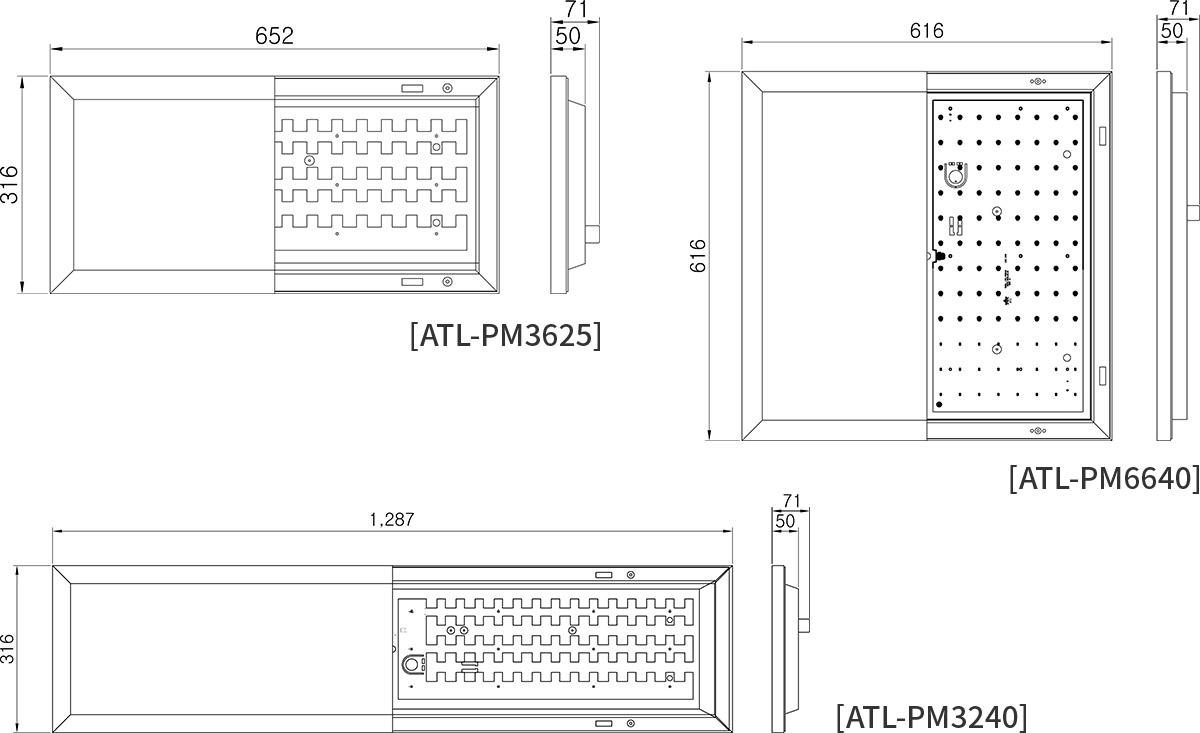

Drawing

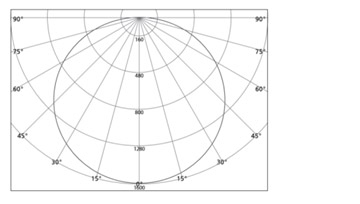

Light distribution curve
