주차장등&벽부등

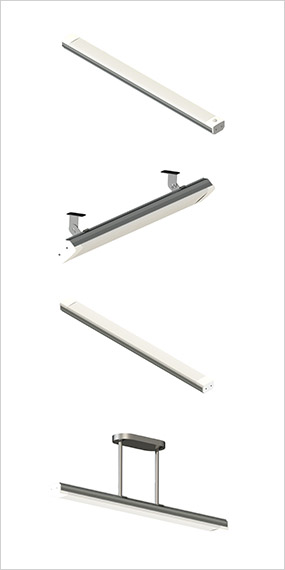

LED raceway light
| Model No. | Size(mm) | Power Consumption(W) | Luminous flux(lm) | Luminous Efficiency(lm/W) | Color Temperature(K) | CRI | Note |
|---|---|---|---|---|---|---|---|
| ATL-RC2818 | 1160X88 | 18 | Over 1890 | Over 105 | 5700 | 80 | |
| ATL-RC2836 | 1160X88 | 36 | Over 3960 | Over 110 | |||
| ATL-RD2836 | 1160X88 | 36 | Over 3960 | Over 110 | Pipe Pendent | ||
| ATL-RS2836 | 1160X88 | 36 | Over 3960 | Over 110 | PIR, Microwave sensor | ||
| ATL-RB2820 | 1160X88 | 20 | Over 2100 | Over 105 | Angle Brk |

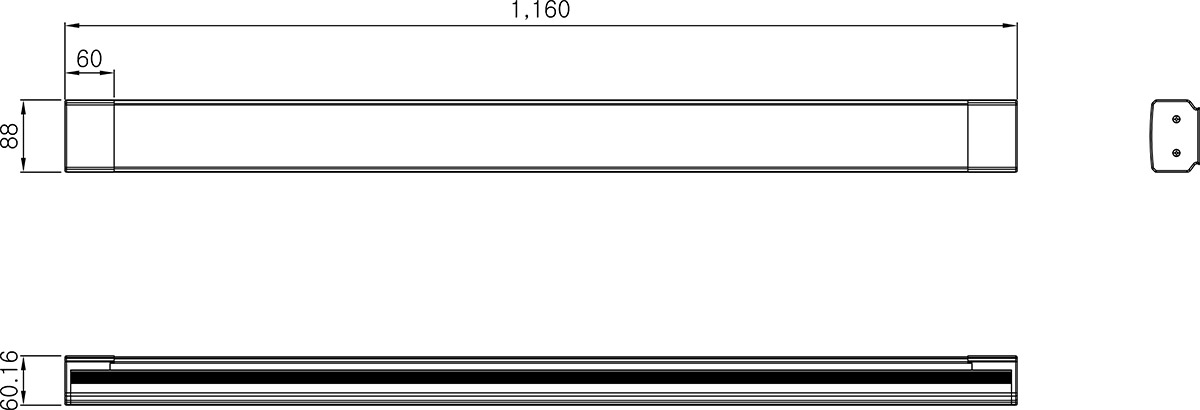

Drawing

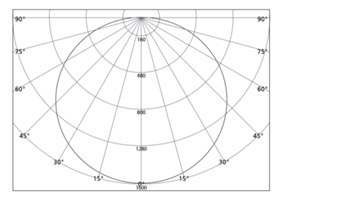

Light distribution curve
