다운라이트&센서등
LED Down Light
| Model No. | Size(mm) | Power Consumption(W) | Luminous flux(lm) | Luminous Efficiency(lm/W) | Color Temperature(K) | CRI | Note |
|---|---|---|---|---|---|---|---|
| ATL-DS0610 | Φ175X79 | 10 | Over 1000 | Over 100 | 5700 | 80 | STEEL, PC |
| ATL-DS0612 | Φ175X79 | 12 | Over 1320 | Over 105 | |||
| ATL-DS0615 | Φ175X79 | 15 | Over 1650 | Over 105 | |||
| ATL-DA0610 | Φ175X85 | 10 | Over 1000 | Over 100 | AL, PC | ||
| ATL-DA0612 | Φ175X85 | 12 | Over 1320 | Over 105 | |||
| ATL-DA0615 | Φ175X85 | 15 | Over 1650 | Over 105 | |||
| ATL-DA0620 | Φ175X85 | 20 | Over 2100 | Over 105 |

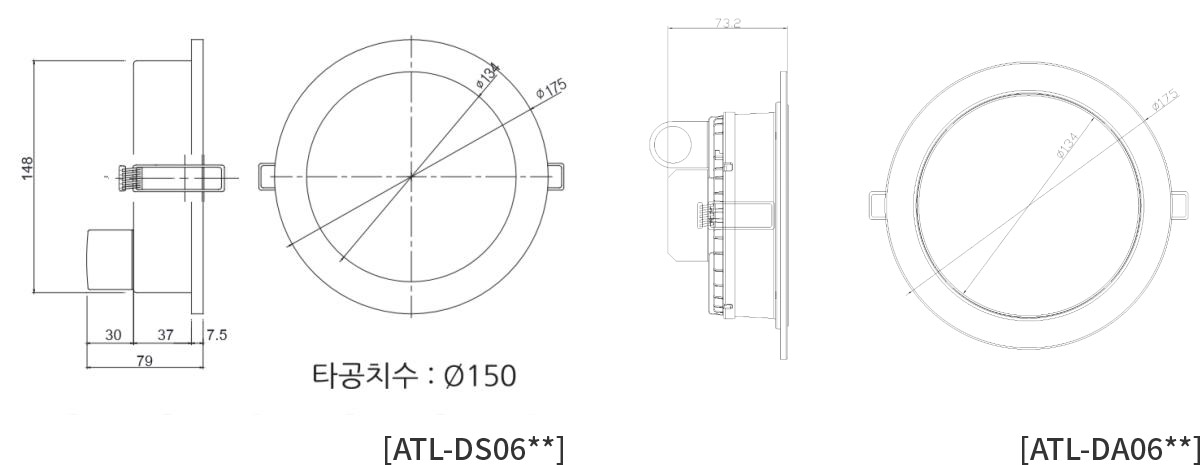

Drawing

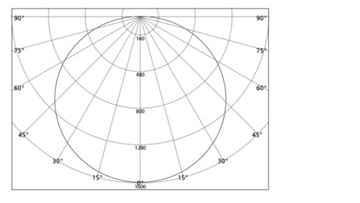

Light distribution curve
